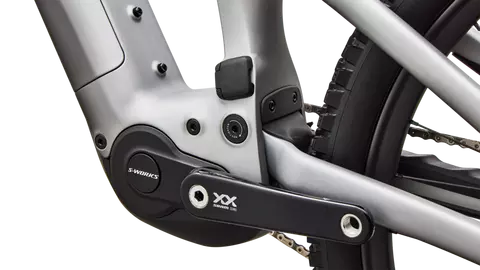

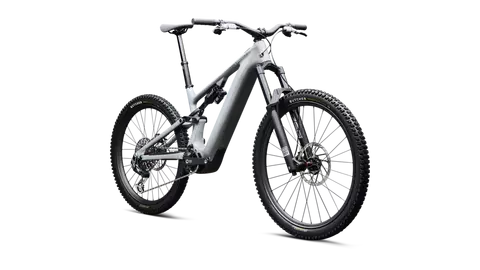

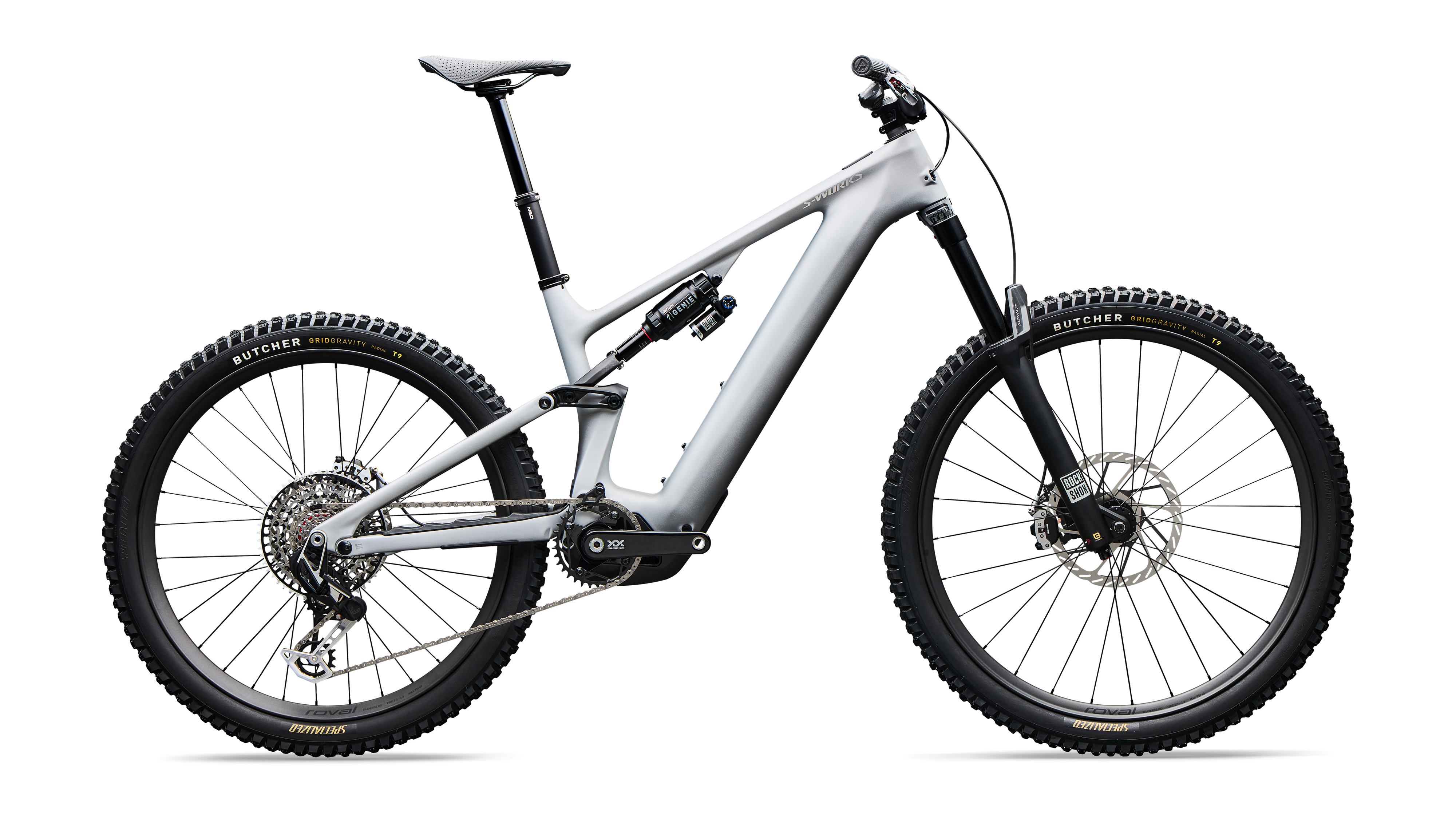

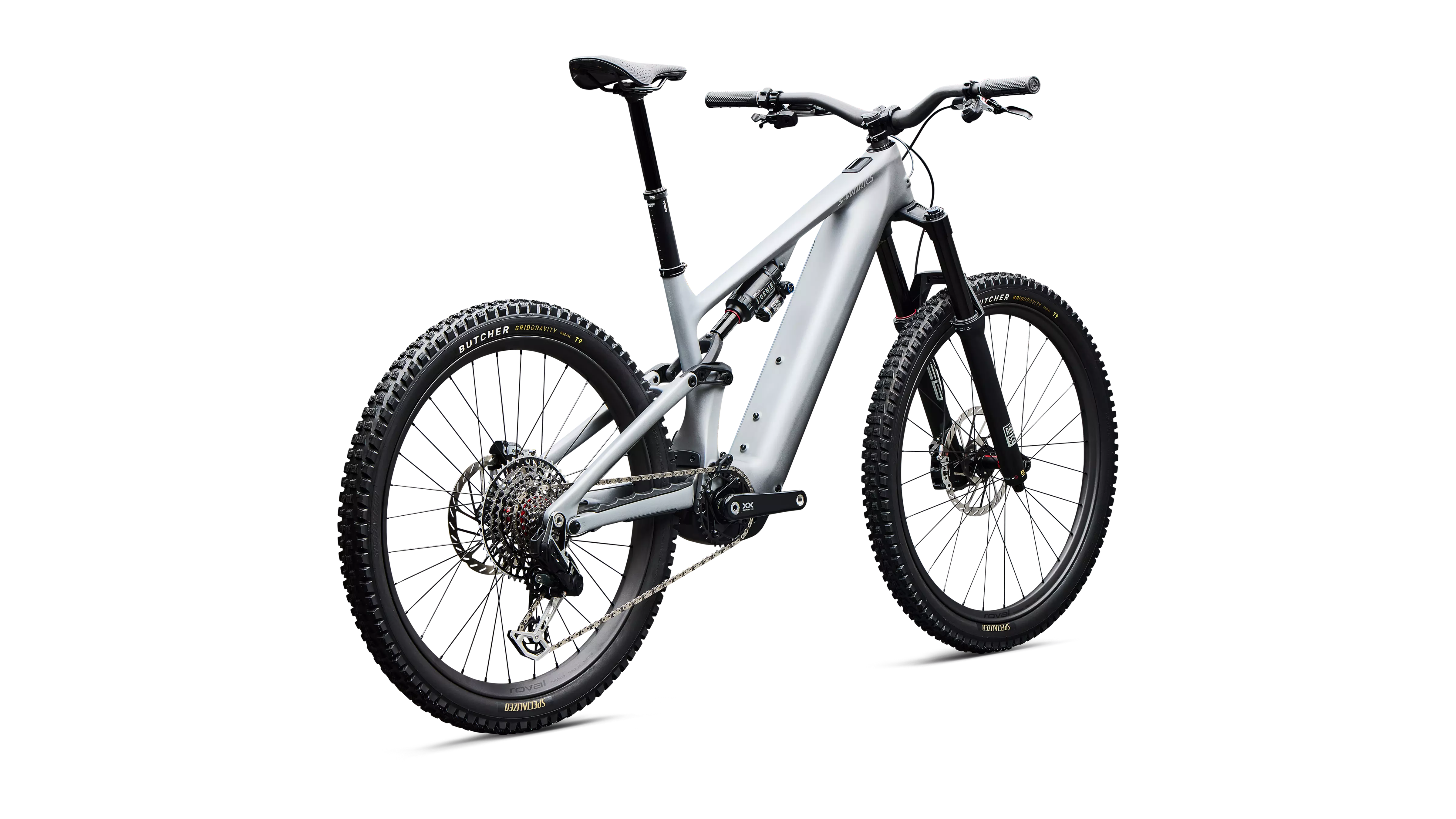

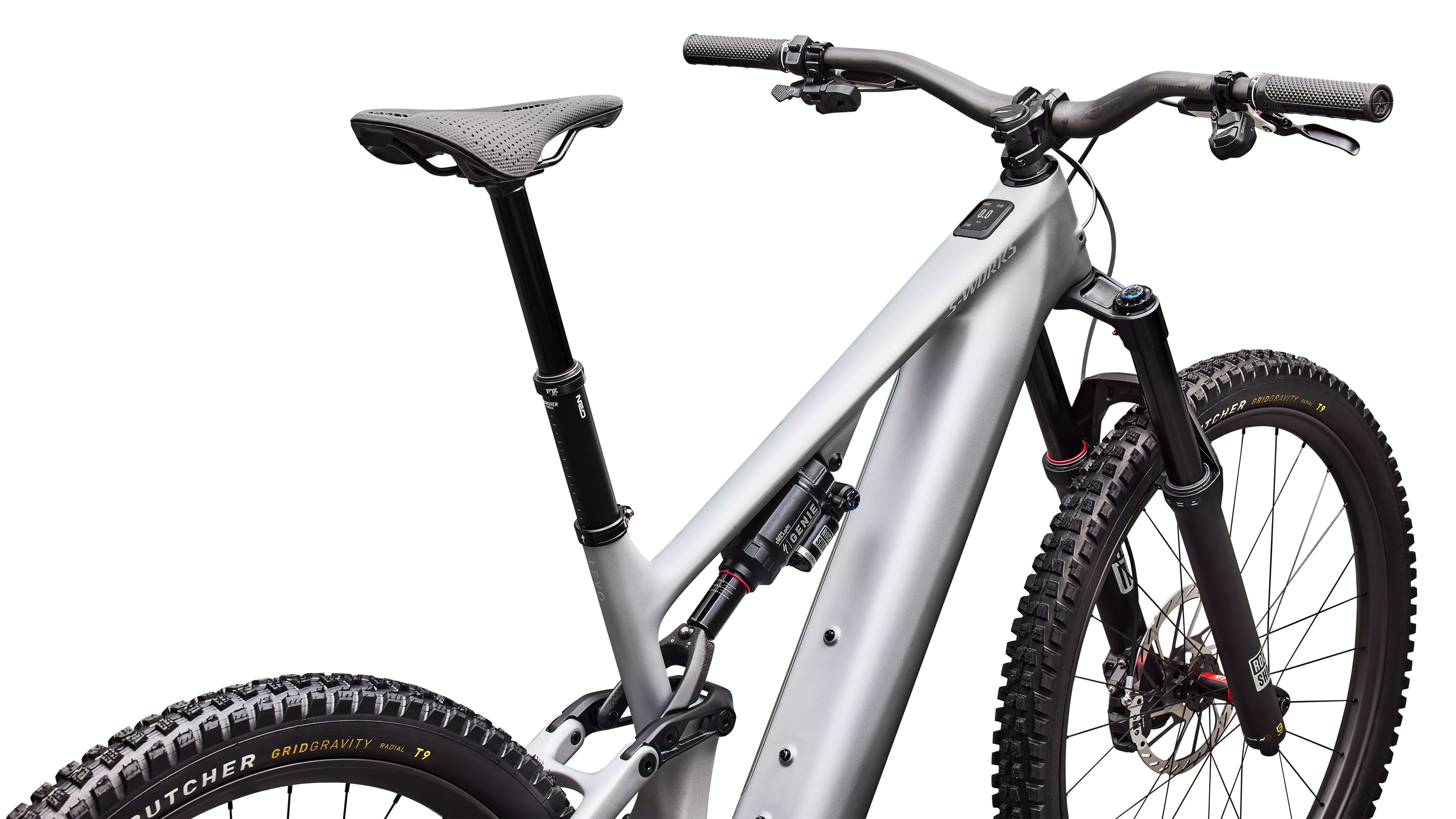

The Specialized S-Works Turbo Levo 4 delivers amplified power, control, and range for challenging off-road trails. Engineered with an 850W motor and a high-capacity 900Wh battery, it provides seamless pedal-assist performance across demanding terrain.

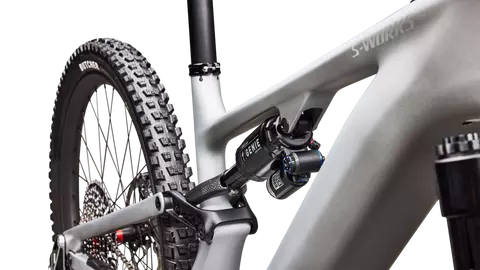

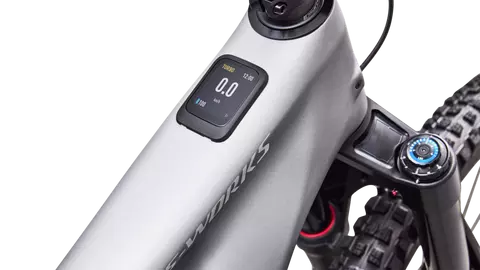

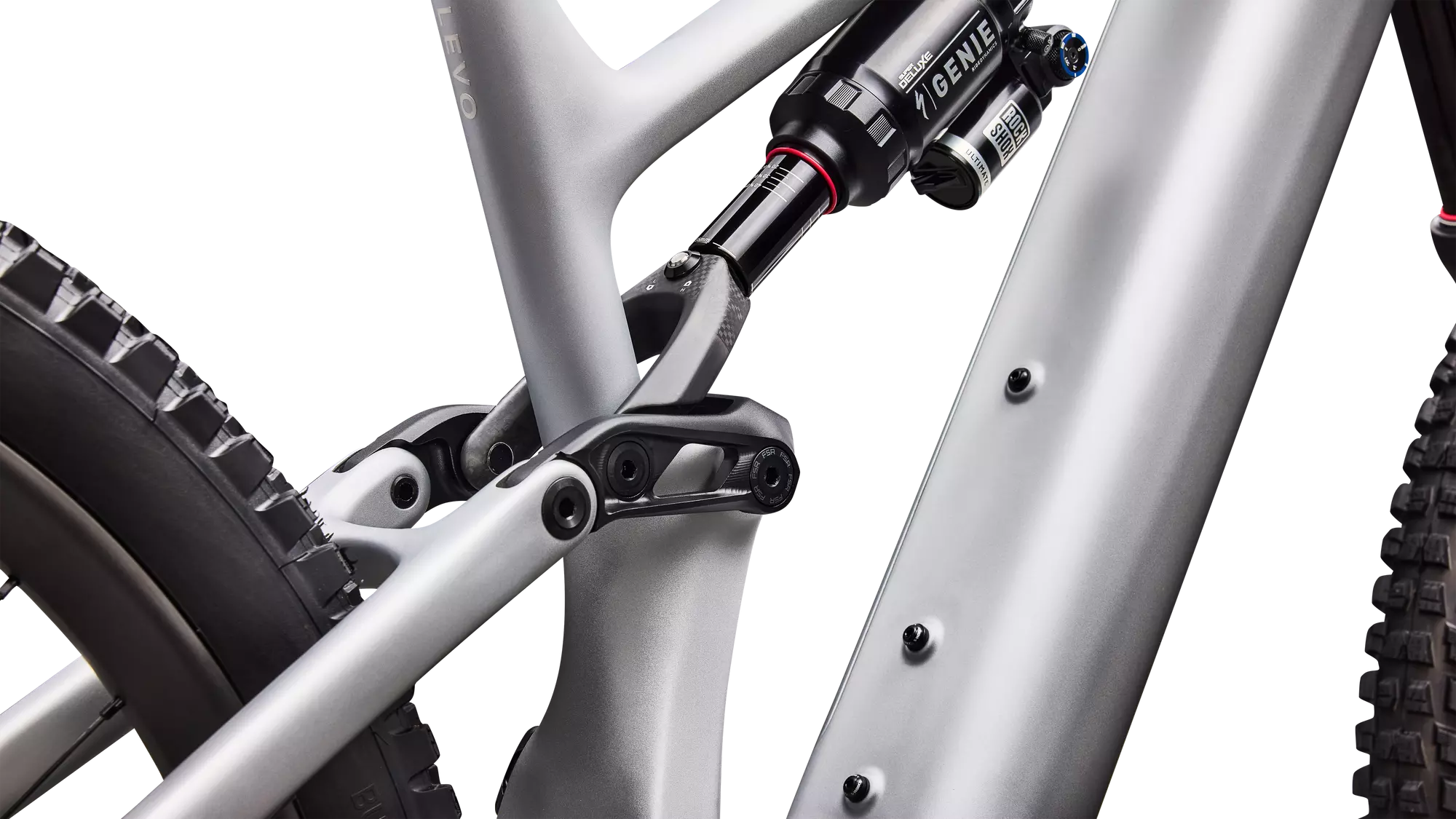

Featuring the advanced GENIE suspension system, this electric mountain bike maximizes traction and ride quality. The integrated MasterMind display and Specialized app connectivity allow for customizable settings and detailed ride tracking.
Key Features
| Motor | 850W |
| Battery | 900Wh |
| Suspension | GENIE suspension system |
| Display | MasterMind display |
| App Compatibility | Specialized app |
| Brand | Specialized |
| Product Type | Electric Mountain Bike |
| Handlebar Width | 80 cm |
| Stem Length | 4 cm |
| Crank Length | 16 cm |
| Head Tube Angle | 64.5° |
| Seat Tube Angle | 77° |
| Bottom Bracket Height | 35 cm |
| Bottom Bracket Drop | 2.95 cm |
| Chainstay Length | 43.5 cm |
| Fork Offset | 4.4 cm |
Highlights
- 850W motor
- 900Wh battery
- GENIE suspension system
- MasterMind display
Videos
Sizing & fit
Available in Specialized S-Sizing geometry from S2 to S6. S2 features a 43.5 cm reach and 61.8 cm stack, scaling up to S6 with a 53.5 cm reach and 66.7 cm stack to suit various rider heights and riding styles.

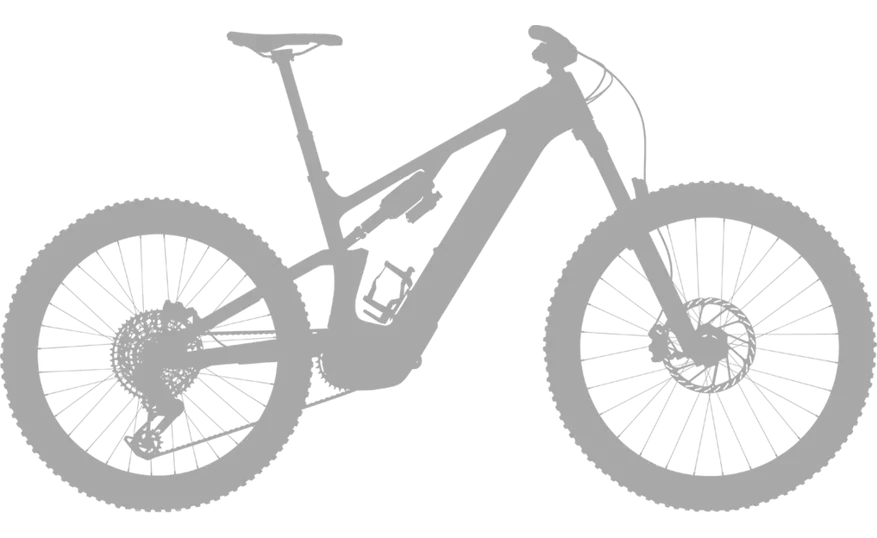

Size chart
| Dimension | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|
| Crank Length | 160mm | 160mm | 160mm | 160mm | 160mm |
| Handlebar Width | 800mm | 800mm | 800mm | 800mm | 800mm |
| Stem Length | 40mm | 40mm | 40mm | 40mm | 40mm |
| Saddle Width | 155mm | 143mm | 143mm | 143mm | 143mm |
| Seatpost Length | 150mm | 175mm | 200mm | 225mm | 240mm |
| Stack | 618mm | 626mm | 638mm | 652mm | 667mm |
| Reach | 435mm | 455mm | 480mm | 505mm | 535mm |
| Headtube Length | 95mm | 103mm | 117mm | 132mm | 149mm |
| Headtube Angle | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
| BB Height | 350mm | 350mm | 350mm | 350mm | 350mm |
| BB Drop | 29.5mm | 29.5mm | 29.5mm | 29.5mm | 29.5mm |
| Trail | 132mm | 132mm | 132mm | 132mm | 132mm |
| Fork Length (full) | 577mm | 577mm | 577mm | 577mm | 577mm |
| Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm | 44mm |
| Front Center | 765mm | 789mm | 820mm | 851mm | 888mm |
| Chainstay Length | 435mm | 435mm | 435mm | 435mm | 435mm |
| Wheelbase | 1200mm | 1223mm | 1254mm | 1286mm | 1323mm |
| Top-tube Length (horizontal) | 578mm | 599mm | 627mm | 655mm | 689mm |
| Bike Standover Height | 753mm | 754mm | 753mm | 758mm | 761mm |
| Seat Tube Length | 390mm | 405mm | 425mm | 445mm | 465mm |
| Seat Tube Angle | 77° | 77° | 77° | 77° | 77° |
| Saddle Height for Effective ST Angle | 690mm | 735mm | 780mm | 825mm | 870mm |
| Max Seatpost Insertion | 274mm | 289mm | 313mm | 337mm | 357mm |
| Min Seatpost Insertion | 80mm | 80mm | 80mm | 80mm | 80mm |
Compatibility
Wirelessly connects with the Specialized digital ecosystem and mobile app for custom motor tuning, diagnostics, and ride tracking via the onboard MasterMind display.
